高速多通道功率计PM2008 详情介绍PM2008 PC Control
High Speed Optical Power Meter Module
PM2008 PC 控制多通道高速光功率计模块
Specifications
产 品 规 范
| 概述 Descriptions |

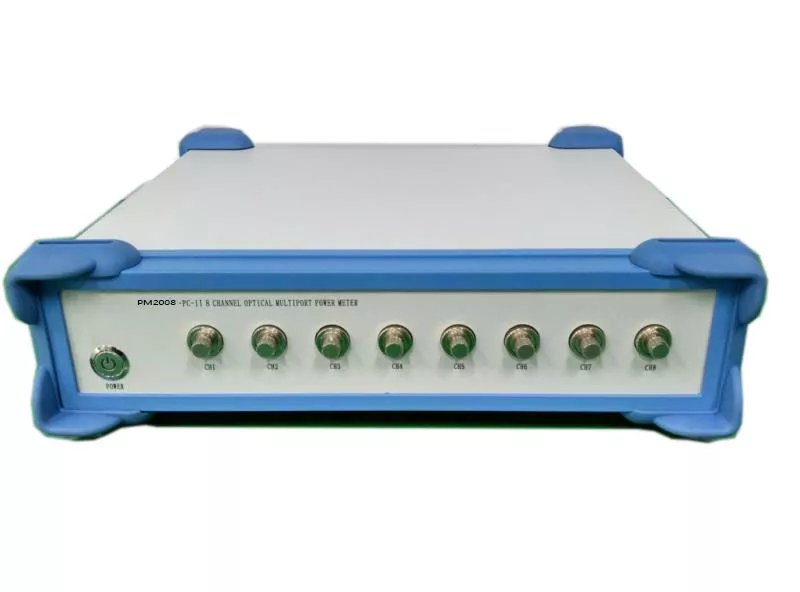

PM2008 8通道光功率计是一款由PC机控制的、针对所有多端口无源器件功率测量的仪器，当然也可同时测试多个单端口器件。仪器主要用于多通道的精密波分复用DWDM元件测试、多路复用器、PON分路器、波长选择开关（WSS）、可重构光分差复用器ROADM、光波导光栅阵列AWG元件和平面光波导PLC元件及模块，以及其它常用的多端口光纤的光学测量和应用。该系统可以扩展集成可调谐激光光源，光衰减器以及偏振控制器，形成一个高性能的无源器件和模块的自动测试系统平台。
Pm2008 8-channel optical power meter is a PC controlled instrument for power measurement of all multi port passive devices. Of course, it can also test multiple single port devices at the same time. The instrument is mainly used for multichannel DWDM component test, multiplexer, PON splitter, WSS, ROADM, AWG component of optical waveguide grating array, PLC component and module of planar optical waveguide, and other commonly used optical measurement and application of multi port optical fiber. The system can be extended and integrated with tunable laser source, optical attenuator and polarization controller to form a high-performance automatic test system platform for passive components and modules.
| 性能特点 Features | 应用范围 Applications |
Fast startup, High accuracy 启动快速、测量精度高 Wide dynamic power range 宽动态功率测量范围 PC Configuration software PC机软件控制 USB Communication USB通讯接口，高速便捷 Compact size Competitive price 价格实惠 | WDM, AWG, PLC components tests WDM，GFF，AWG，PLC 器件测试 Insertion Loss, Return Loss 插损，回损测量 Fiber sensor and fiber cable tests 光纤传感器，光纤电缆测试 PMD and PDL measurements 偏振模色散 PMD 和偏振相关损耗 PDL 测量 Fiber optical, telecom R&D lab tests 光纤，通讯 R&D 实验室测试 |
| 软件界面 PC Configuration Software Monitoring Interface: |
技术规格 Specifications |
型号 Model | PM2008 | |
通道数量 Number of channels | 8 | |
波长范围 | 850 ~ 1700 nm | |
operating Wavelength Range | ||
功率范围 Power Range | +3~-80dBm | |
平均采样时间 Average sampling time | 0.001ms~1000ms | |
光纤类型 | Standard SM and MM up to 62.5 um core size | |
Application Fiber Type | ||
绝对精度 | +/- 4% (1200 nm ~ 1610 nm) | |
Uncertainty (accuracy)at reference condition | ||
相对精度 | < 0.02 dB Typical | |
Relative Uncertainty(accuracy) at reference condition | ||
功率线性度 Power Linearity | <= +/- 0.02 dB (1200 nm ~ 1610 nm, + 0 ~ -60 dBm) | |
回损 Return Loss | > 40 dB | |
校准周期 Recalibration Period | 2 years | |
光输入接口 Optical Interface | FC/PC connector or bare fiber fixture | |
通信接口 | RJ45以太网接口(Standard RJ45 Ethernet interface) | |
Communication Interface | ||
工作温度 | 0 ~ +40℃ | |
Operating Temperature | ||
存储温度 Storage Temperature | ‘-10 ~ +70℃ | |
外形尺寸 Dimensions | 标准的1.5U机箱 | |
| 测 试 报 告 Test Report |
