高速功率计PM2006 详情介绍PM2006 PC Control

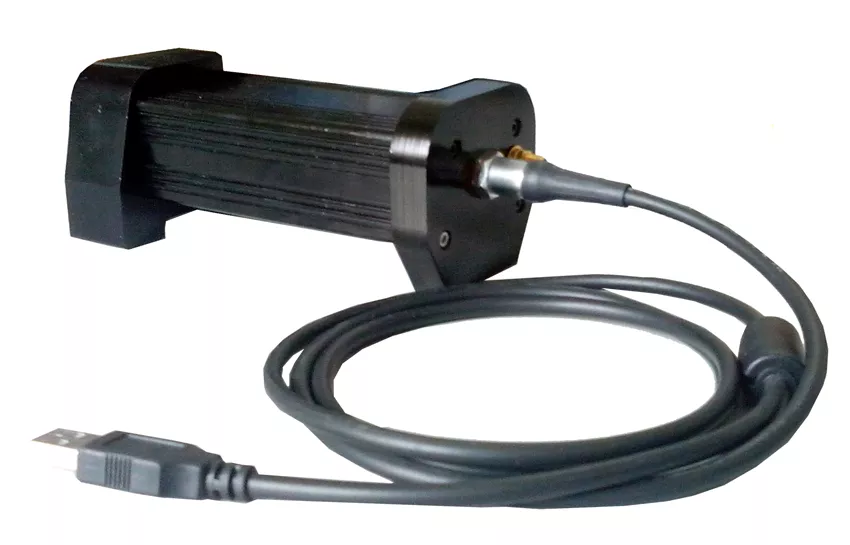

High Speed Optical Power Meter Module
PM2006 PC 控制高速光功率计模块
Specifications
产 品 规 范
| 概述 Descriptions |
PM2006高速光功率计可测量所连接光纤发射出的光功率值，采样周期达到uS级别，可更快速地采集和处理数据。该功率计模块采用USB通讯接口，直接与PC机进行通讯，通过配置软件查看数据以及设置参数。
PM2006 Optical Power Meter measures the power emitted from a connected single-mode fiber. Its sampling period achieves microsecond (μs) level, and more quickly collects and processes the data. This Optical Power Meter is equipped with a USB port for communication with PC, and the user can view measured values and set the operating parameters via the factory configuration software.
PM2006高速光功率计模块可用于高精密波分复用DWDM元件，光波导光栅阵列AWG元件，平面光波导PLC元件，WSS，OPM，DPSK，光放大器EDFA和其它通用的光纤的光学测量应用。
The PM2006 Optical Power Meter is a base measurement instrument for Tele-com and the characterization and feature evaluation of optical fiber and optical cable, optical passive component. It offers superior performance in testing DWDM components, AWG & PLC components, optical amplifiers, and performing other general-purpose fiber optical test and measurement applications.
相较于OpeakTech公司其它型号的功率计，PM2006具有高速采样的特点，并且外形小巧、尤其适用于组装成多通道光功率计采样系统。
The PM2006 Optical Power Meter features high-speed sampling and compact dimension, it specifically suits to be integrated into a multi-channel power meter sampling system.
| 性能特点 Features | 应用范围 Applications |
Fast startup, High accuracy 启动快速、测量精度高 Wide dynamic power range 宽动态功率测量范围 PC Configuration software PC机软件控制 USB Communication USB通讯接口，高速便捷 Compact size Competitive price 价格实惠 | WDM, AWG, PLC components tests WDM，GFF，AWG，PLC 器件测试 Insertion Loss, Return Loss 插损，回损测量 Fiber sensor and fiber cable tests 光纤传感器，光纤电缆测试 PMD and PDL measurements 偏振模色散 PMD 和偏振相关损耗 PDL 测量 Fiber optical, telecom R&D lab tests 光纤，通讯 R&D 实验室测试 |
| 软件界面 PC Configuration Software Monitoring Interface: |
技术规格 Specifications |
型号Model | PM2006/1 | PM2006/2 |
探测器类型 Sensor Element | Single Channel InGaAs | |
波长范围 operating Wavelength Range | 850 ~ 1700 nm | |
功率范围Power Range | + 3 ~ -85dBm | + 23 ~ -65 dBm |
采样周期Sampling Period | >=0.01ms | |
光纤类型Application Fiber Type | Standard SM and MM up to 62.5 um core size | |
绝对精度 Uncertainty (accuracy) at reference condition | +/- 4% (1200 nm ~ 1610 nm) | |
相对精度 Relative Uncertainty (accuracy) at reference condition | < 0.02 dB Typical | |
功率线性度Power Linearity | <= +/- 0.02 dB (1200 nm ~ 1610 nm, + 0 ~ -60 dBm) | |
回损 Return Loss | > 40 dB | |
校准周期 Recalibration Period | 2 years | |
光输入接口 Optical Interface | FC/PC connector or bare fiber fixture | |
通信接口 Communication Interface | USB （50mA） | |
工作温度 Operating Temperature | 0 ~ +40℃ | |
存储温度 Storage Temperature | -30 ~ +80℃ | |
外形尺寸 Dimensions | PM2006 55mmH，70 mmW，150 mmD
| |
重量 Weight | PM2006 0.5Kg | |

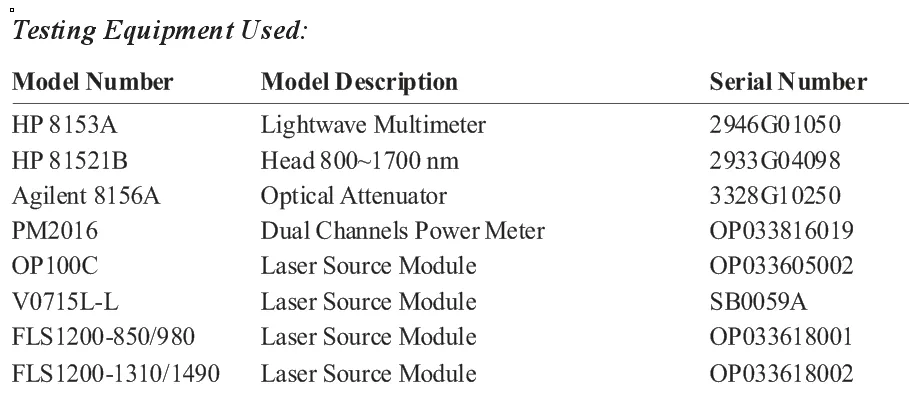

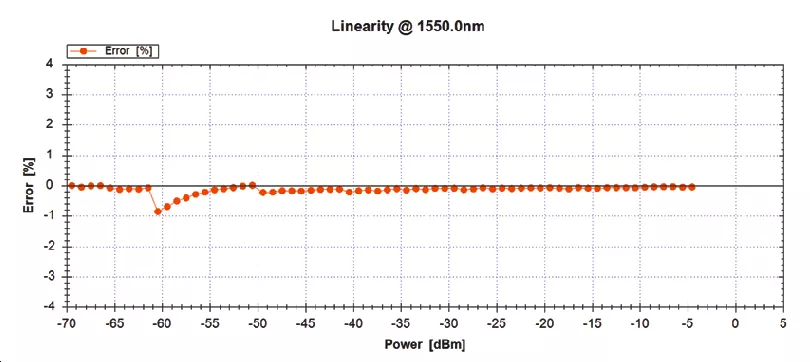

| 测 试 报 告 Test Report |
