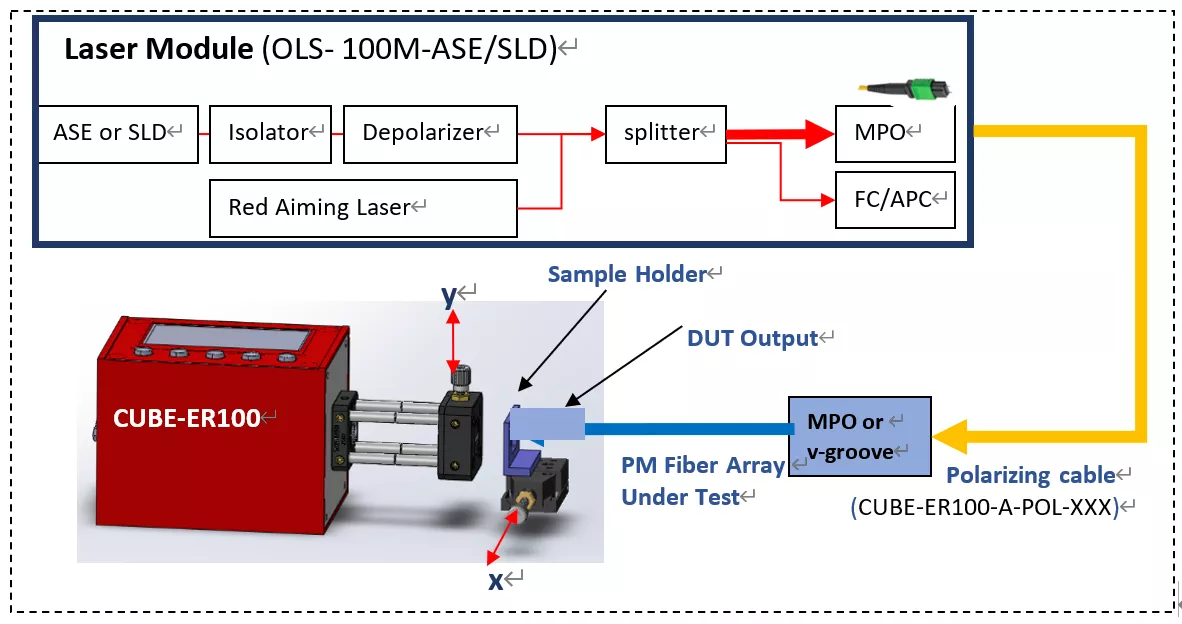

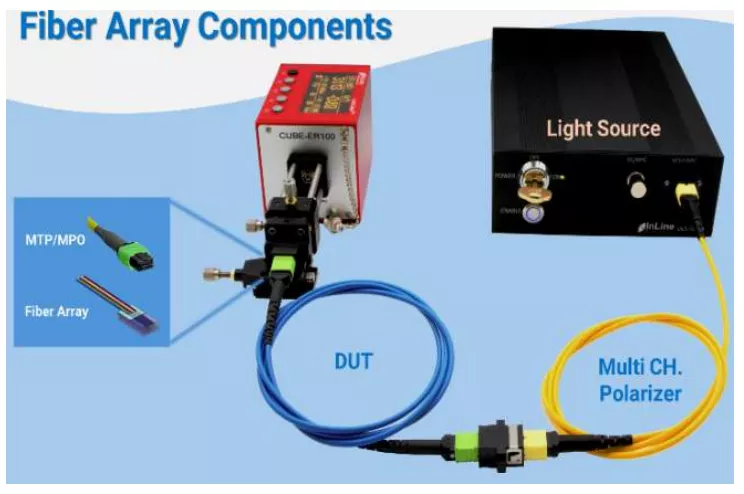

 Inline-multi-channel Polarizer (PER>40dB)

 Measured PER Range > 52dB

 Polarized Light Coupled to DUT in Free Space

 No-need to Adjust Input Polarization States

 Customized Input Polarizers

 Customized Sample Holding Fixture

 Built-in Red Aiming Laser

 Fiber Array Unit (FAU) Manufacturing

 MTP/MPO Patch Cord Manufacturing

 Quality Control

 FAU Processing Develop

1

OSL-100M-ASE/SLD-CXXXX

Low-DOP ASE or SLD Light Source with MPO multiple   fiber outputs and FC/APC single fiber output, built-in isolator and   depolarizer

1

2

CUBE-ER100-FC-S-6

Polarization extinction ratio meter

1

3

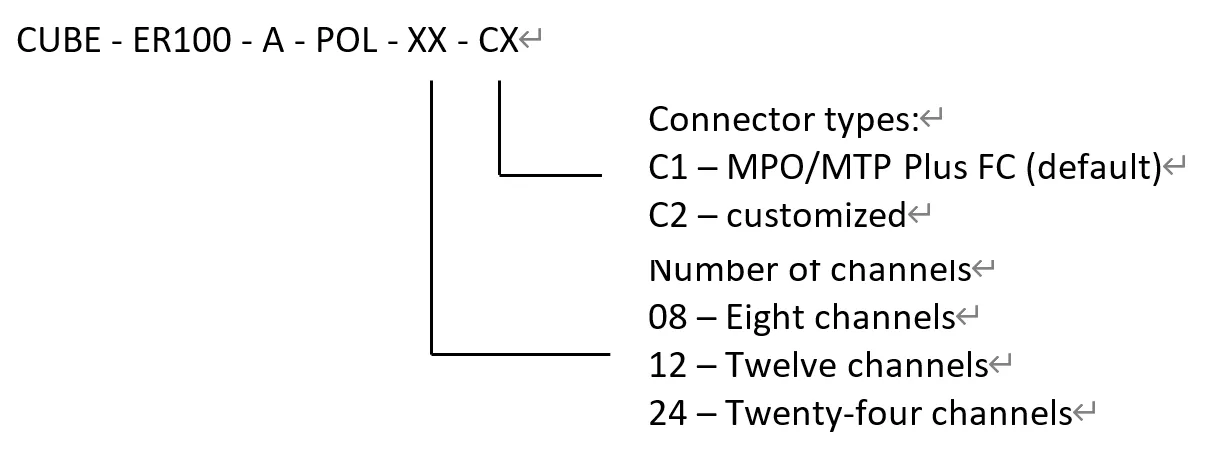

CUBE-ER100-A-POL-XX-CX

Customized multiple channels polarizer with adapter   to DUT, the PER > 40dB, fiber length >0.5m

1

4

CUBE-ER100-A-LEN5-16 or

CUBE-ER100-A-LEN5-30

16mm or 30mm cage system with Lens to couple light   from DUT into CUBE-ER100

1

5

CUBE-ER100-A-T12

Single-axis miniature translation stage, 12.7mm   travel

1

6

CUBE-ER100-A-SHxxx

Customized sample holder

1

PER measurement Range

>40dB @ -20dBm

PER Angle Accuracy

+/-1^ο (after being   calibrated using angle standard)

#1. OLS-100M-ASE/SLD Broadband light   Source

Light Source Type

ASE (not for 1310nm), or SLD

Central Wavelength

1310nm, 1550nm, 1064nm

Linewidth

>10nm

Short-term Optical Stability (15 minutes)

± 0.01dB (typical),   Max. ± 0.02dB

Long-term Optical Stability (8 hours)

± 0.05dB   (typical), Max. ± 0.1dB

Degree of Polarization

< 5%

Output Power

-10dBm/channel

TEC Stability

± 0.1^οC (typical), Max. ± 0.2^οC

TEC Control Range

25^οC (typical), Min. 20^οC, Max. 30^οC

Optical Output for Single Fiber

FC Adapter

Optical Output for PM Fiber Array

12 or 24 channel MPO/MTP Adapter (Default)

Power Supply

DC 15V/1A

Operating Temperature

5 to 40 ^οC

Storage Temperature

-30 to 70 ^οC

Dimensions

145 (W) x 200 (D) x 54 (H) mm

#2. CUBE-ER100-FC-S-6 Extinction Ratio Meter

Operating Wavelength Range

600 to 1600nm

Calibration Wavelength

630, 850, 980, 1060, 1310,   1550nm

PER Range @ 1310 or 1550nm

0 to 52dB for input power   -5 to 11dBm @1550nm

0 to 50dB for input power   -5 to 11dBm @1310nm

0 to 40dB for input power   -20 to -5dBm

0 to 30dB for input power   -30 to -20dBm

PER Range @ 630, 980, or   1060nm

0 to 40dB for input power   -5 to 11dBm

0 to 35dB for input power   -15 to -5dBm

Input Adapters

FC adapter

Optical Power Range

-65 to 11dBm @ 1310/1550nm

PER Resolution

0.05dB

PER Accuracy

0.05dB + PER*0.7%

Angular Resolution

0.028^ο

Absolute Angular Accuracy

1.0 ^ο

Angular Repeatability

±0.06 ^ο

Optical Power Measurement   Accuracy

±0.5dB

Optical Power Resolution

0.02dB

Measurement Rate

Up to 10 measurements per sec for normal   mode

Up to 50 measurements per sec in tracking   mode

Measurement Mode

Continues, tracking, and manual mode

Display

2.42” 128 x 64 OLED graphic display

Operating Temperature   Range

0 to 40 ^οC

Storage Temperature Range

-40 to 80 ^οC

Electrical Power Supply

DC 15V/1A

Communication Interface

USB and UART

GPIO

DB9 connector including two analog outputs,   two TTL input/output triggers

Dimensions

63.5 (L) x 63.5 (W) x 85   (H) mm

#3. CUBE-ER100-A-POL- Multi CH Polarizer

Connector Type

MPO/MTP male, FC,   Customized

Number of Channels of   MPO/MTP

1~24

Extinction Ratio

> 40dB

Fiber Length

>0.5m (typical)
